AF437 200W 16000lm IP66

Specification:

Item Name	200W SMD Flood Light	Item No.	AF437-200W
Input Voltage	AC100-240V 50/60Hz	Power	200W
Lumen	16000Lm	Led Chip	2835 SMD
Beam Angle	120degree	Shell Material	Die-Casting Aluminum
Shell Color	Black	Size	L410xW365XH105mm
Led Color	3000k 4000K 6000K	IP Degree	IP66 Outdoor Use
Dimmable	No	Certificate	CE and Rohs
Life Time	>35000Hrs

Inquiry Now

Description:

This Led Flood Lights is new development in the past year. Use pressing buckle cover design. The overall design of the radiator body improves the water resistance to a new grade. Double silicone waterproof ring design is a major feature of the product SMD light source make lumen for whole light increase 10%-15%.

Advantage:

♦ Whole Set Die-Casting Aluminum Shell, Use Thick Material
♦ High Purity Aluminum Making a good heat dissipation performance
♦ Toughened glass cover to protect the lamp body is not fragile
♦ The buckle design makes the cover easier to stick to the lamp body, Resulting in a better waterproofing effect
♦ There are four drain holes in the lamp body surface, The water covered on surface can easily drain
♦ Internal outer ring with dual water tank design, Built-in double silicone waterproof apron, The maximum
limit to prevent rain into the lamp body
♦ SMD light source to achieve the greatest degree of brightness increase, At the same time once the water vapor
into the lamp body can play a secondary protection
♦ SMD heat dissipation will be better than COB
♦ We are using a 3-year warranty of the CE certified waterproof power supply IP67
♦ All power supplies are 100% aging tested using the machine
♦ All the lights are lit 48 hours aging, at the same time we will make waterproof aging test

Parameter:

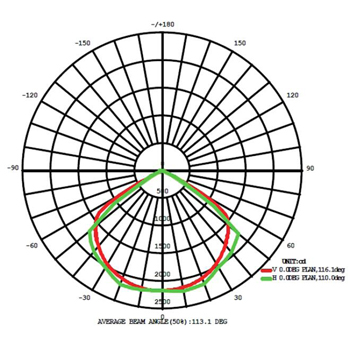

Radiation diagram

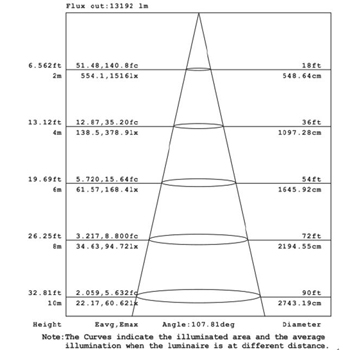

Lux diagram

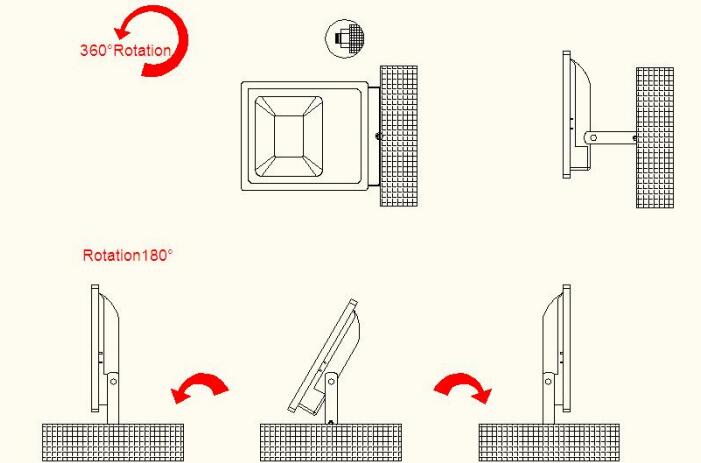

Installation:

Application:

Floodlights are widely used in shopping malls, hotels, gardens and other architectural lighting at the same time also used for road cinemas, billboards, trees and other decorative lighting.
